Purge System Hi-coupler and Line Coupler

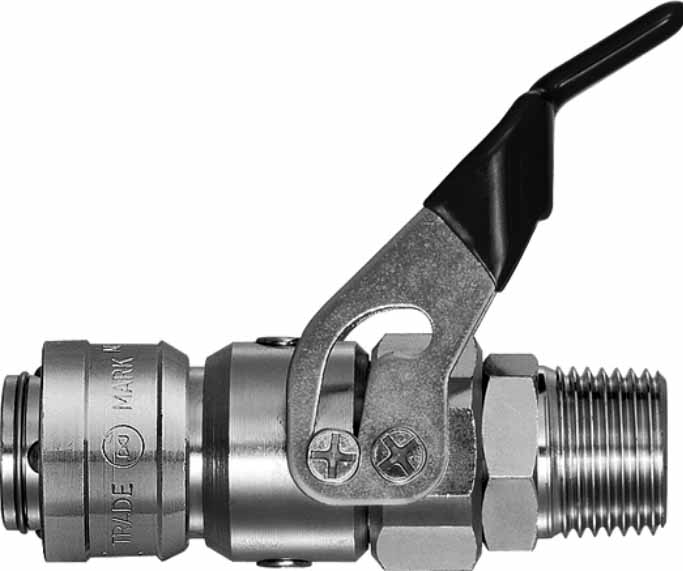

351661 HI COUPLER PURGE SYSTEM, PV-20SM MALE R1/4"

IMPA:351661

MTML UOM:PCE

Push-to-connect operation with valve opening and closing by the purge system lever action, which eliminates unpleasant shock and noise on disconnection. The lever will never turn to open until plug is connected by means of safety measure. Purge System Hi Cuplas: Made of chrome plated brass. Can be connected with PH, PM and PF series plugs sized from 1/4" to 3/4".

351662 HI COUPLER PURGE SYSTEM, PV-30SM MALE R3/8"

IMPA:351662

MTML UOM:PCE

Push-to-connect operation with valve opening and closing by the purge system lever action, which eliminates unpleasant shock and noise on disconnection. The lever will never turn to open until plug is connected by means of safety measure. Purge System Hi Cuplas: Made of chrome plated brass. Can be connected with PH, PM and PF series plugs sized from 1/4" to 3/4".

351663 HI COUPLER PURGE SYSTEM, PV-40SM MALE R1/2"

IMPA:351663

MTML UOM:PCE

Push-to-connect operation with valve opening and closing by the purge system lever action, which eliminates unpleasant shock and noise on disconnection. The lever will never turn to open until plug is connected by means of safety measure. Purge System Hi Cuplas: Made of chrome plated brass. Can be connected with PH, PM and PF series plugs sized from 1/4" to 3/4".

351664 HI COUPLER PURGE SYSTEM, PV-400SM MALE R1/2"

IMPA:351664

MTML UOM:PCE

Push-to-connect operation with valve opening and closing by the purge system lever action, which eliminates unpleasant shock and noise on disconnection. The lever will never turn to open until plug is connected by means of safety measure. Purge System Hi Cuplas: Made of chrome plated brass. Can be connected with PH, PM and PF series plugs sized from 1/4" to 3/4".

351665 HI COUPLER PURGE SYSTEM, PV-600SM MALE R3/4"

IMPA:351665

MTML UOM:PCE

Push-to-connect operation with valve opening and closing by the purge system lever action, which eliminates unpleasant shock and noise on disconnection. The lever will never turn to open until plug is connected by means of safety measure. Purge System Hi Cuplas: Made of chrome plated brass. Can be connected with PH, PM and PF series plugs sized from 1/4" to 3/4".

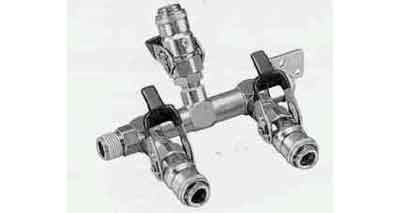

351671 LINE COUPLER PURGE SYSTEM, RE-PV-30(3-BR) INLET R1/2MALE

IMPA:351671

MTML UOM:SET

Push-to-connect operation with valve opening and closing by the purge system lever action, which eliminates unpleasant shock and noise on disconnection. The lever will never turn to open until plug is connected by means of safety measure. Purge System Line Cuplas: Made of chrome plated brass. Can be connected with PH, PM and PF series plugs sized from 1/4" to 3/4".
