Tank Washing Machines, Twin Nozzle VP Minor

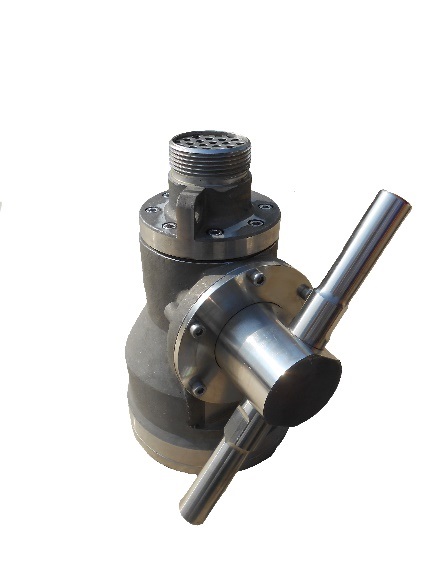

590766 TANK CLEANING MACHINE VP MINOR, S.STEEL 2X7MM NOZZLE

IMPA:590766

MTML UOM:SET

Suitable for use on both small and medium crude oil, chemical and product tankers and can be supplied as a fixed or portable application. The VP Minor is also available as a “sealed for life” machine which has been specifically designed to operate with aggressive / abrasive types of drive media. The “sealed for life machines” are also the perfect choice when considering the cleaning of mud / slop tanks: this is due to the nature of the sealed gearbox design.Key Features:•Nozzle sizes range from 7mm to 11mm (portable or flanged);•Offered with either “sealed for life”(mud machine) or “media lubricated” drive to ensure no cargo contamination;•Alternative flange (up to 160mm diameter) and fixings available:•Sealed unit available for use in corrosive mud tanks;Technical Specification:Wash Pattern: pre-programmable rotary 360°.Operating Pressure: Maximum 12 kg/cm² (190 psi), Operating Temperature: Maximum 95°C (203°F), Installation: Portable 1 ½”BSP male thread, Fixed Flanged Std DIN 40 NP10, Weight: Portable 8.2 Kgs (18.1 lbs), Fixed Flanged 10.2 kgs(22.5 lbs), Minimum Deck Opening: Ø 200mm (8.0 inches)

590767 TANK CLEANING MACHINE VP MINOR, S.STEEL 2X8MM NOZZLE

IMPA:590767

MTML UOM:SET

Suitable for use on both small and medium crude oil, chemical and product tankers and can be supplied as a fixed or portable application. The VP Minor is also available as a “sealed for life” machine which has been specifically designed to operate with aggressive / abrasive types of drive media. The “sealed for life machines” are also the perfect choice when considering the cleaning of mud / slop tanks: this is due to the nature of the sealed gearbox design.Key Features:•Nozzle sizes range from 7mm to 11mm (portable or flanged);•Offered with either “sealed for life”(mud machine) or “media lubricated” drive to ensure no cargo contamination;•Alternative flange (up to 160mm diameter) and fixings available:•Sealed unit available for use in corrosive mud tanks;Technical Specification:Wash Pattern: pre-programmable rotary 360°.Operating Pressure: Maximum 12 kg/cm² (190 psi), Operating Temperature: Maximum 95°C (203°F), Installation: Portable 1 ½”BSP male thread, Fixed Flanged Std DIN 40 NP10, Weight: Portable 8.2 Kgs (18.1 lbs), Fixed Flanged 10.2 kgs(22.5 lbs), Minimum Deck Opening: Ø 200mm (8.0 inches)

590768 TANK CLEANING MACHINE VP MINOR, S.STEEL 2X9MM NOZZLE

IMPA:590768

MTML UOM:SET

Suitable for use on both small and medium crude oil, chemical and product tankers and can be supplied as a fixed or portable application. The VP Minor is also available as a “sealed for life” machine which has been specifically designed to operate with aggressive / abrasive types of drive media. The “sealed for life machines” are also the perfect choice when considering the cleaning of mud / slop tanks: this is due to the nature of the sealed gearbox design.Key Features:•Nozzle sizes range from 7mm to 11mm (portable or flanged);•Offered with either “sealed for life”(mud machine) or “media lubricated” drive to ensure no cargo contamination;•Alternative flange (up to 160mm diameter) and fixings available:•Sealed unit available for use in corrosive mud tanks;Technical Specification:Wash Pattern: pre-programmable rotary 360°.Operating Pressure: Maximum 12 kg/cm² (190 psi), Operating Temperature: Maximum 95°C (203°F), Installation: Portable 1 ½”BSP male thread, Fixed Flanged Std DIN 40 NP10, Weight: Portable 8.2 Kgs (18.1 lbs), Fixed Flanged 10.2 kgs(22.5 lbs), Minimum Deck Opening: Ø 200mm (8.0 inches)

590769 TANK CLEANING MACHINE VP MINOR, S.STEEL 2X10MM NOZZLE

IMPA:590769

MTML UOM:SET

Suitable for use on both small and medium crude oil, chemical and product tankers and can be supplied as a fixed or portable application. The VP Minor is also available as a “sealed for life” machine which has been specifically designed to operate with aggressive / abrasive types of drive media. The “sealed for life machines” are also the perfect choice when considering the cleaning of mud / slop tanks: this is due to the nature of the sealed gearbox design.Key Features:•Nozzle sizes range from 7mm to 11mm (portable or flanged);•Offered with either “sealed for life”(mud machine) or “media lubricated” drive to ensure no cargo contamination;•Alternative flange (up to 160mm diameter) and fixings available:•Sealed unit available for use in corrosive mud tanks;Technical Specification:Wash Pattern: pre-programmable rotary 360°.Operating Pressure: Maximum 12 kg/cm² (190 psi), Operating Temperature: Maximum 95°C (203°F), Installation: Portable 1 ½”BSP male thread, Fixed Flanged Std DIN 40 NP10, Weight: Portable 8.2 Kgs (18.1 lbs), Fixed Flanged 10.2 kgs(22.5 lbs), Minimum Deck Opening: Ø 200mm (8.0 inches)

590770 TANK CLEANING MACHINE VP MINOR, S.STEEL 2X11MM NOZZLE

IMPA:590770

MTML UOM:SET

Suitable for use on both small and medium crude oil, chemical and product tankers and can be supplied as a fixed or portable application. The VP Minor is also available as a “sealed for life” machine which has been specifically designed to operate with aggressive / abrasive types of drive media. The “sealed for life machines” are also the perfect choice when considering the cleaning of mud / slop tanks: this is due to the nature of the sealed gearbox design.Key Features:•Nozzle sizes range from 7mm to 11mm (portable or flanged);•Offered with either “sealed for life”(mud machine) or “media lubricated” drive to ensure no cargo contamination;•Alternative flange (up to 160mm diameter) and fixings available:•Sealed unit available for use in corrosive mud tanks;Technical Specification:Wash Pattern: pre-programmable rotary 360°.Operating Pressure: Maximum 12 kg/cm² (190 psi), Operating Temperature: Maximum 95°C (203°F), Installation: Portable 1 ½”BSP male thread, Fixed Flanged Std DIN 40 NP10, Weight: Portable 8.2 Kgs (18.1 lbs), Fixed Flanged 10.2 kgs(22.5 lbs), Minimum Deck Opening: Ø 200mm (8.0 inches)
