Specifications for Extension Couplers/Adaptors

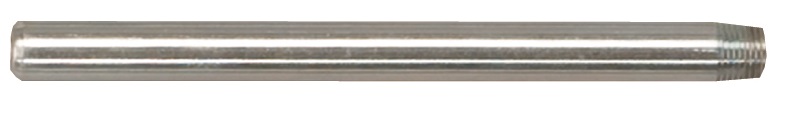

617575 STRAIGHT ADAPTOR 120MM #HSP-1, P/N.804903

IMPA:617575

MTML UOM:PCE

Straight Adaptor HSP-1 P/N 804903, L=120 mm, PT 1/8" Male (R)

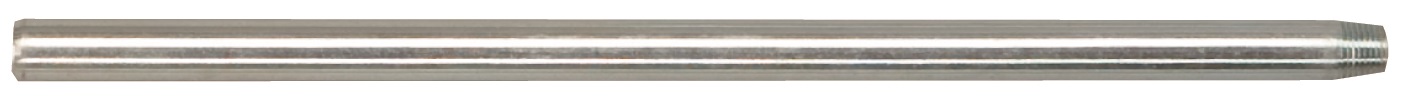

617576 STRAIGHT LONG ADAPTOR 240MM, #HSP-2 P/N.804904

IMPA:617576

MTML UOM:PCE

Straight Long Adaptor, HSP-2,　804904 240 mm, 1/8" PT 28 (M)

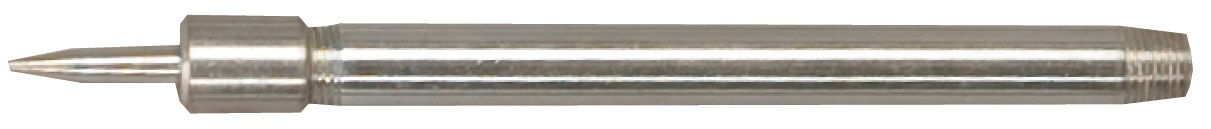

617577 NEEDLE ADAPTOR 135MM #HSP-3, P/N.800701

IMPA:617577

MTML UOM:PCE

Needle Adaptor HSP-3 P/N 800701for concealed hinges or tight spots, L=135 mm, PT 1/8" Male (R)

617579 STRAIGHT EXTRA LONG ADAPTOR, 450MM #HSP-10 P/N.804907

IMPA:617579

MTML UOM:PCE

Straight Extra Long Adaptor HSP-10 P/N 804907, L=450mm, PT 1/8" Male (R)

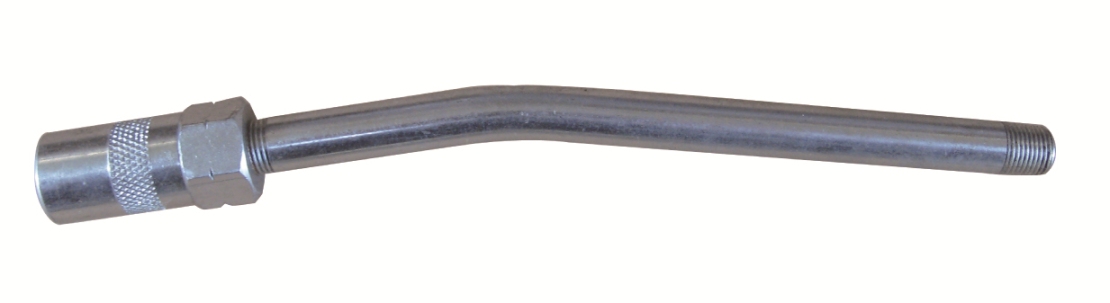

617580 STRAIGHT HYDRAULIC ADAPTOR, 185MM #CNP-1 P/N.804910

IMPA:617580

MTML UOM:PCE

Standard Hydraulic Adaptor CNP-1, P/N 804910, L=185 mm, PT 1/8" Male (R)

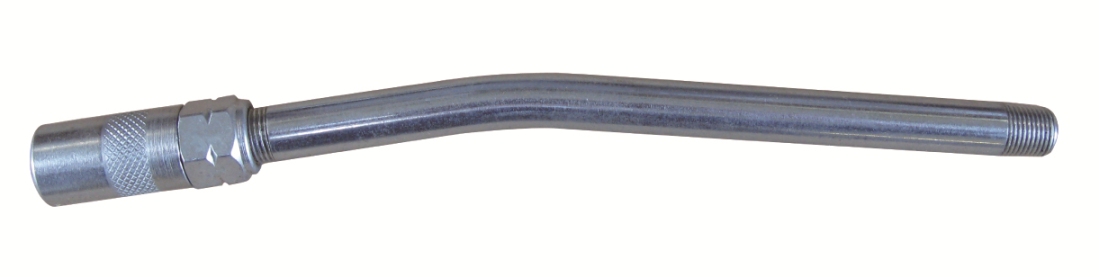

617581 SMALL DIAM HYDRAULIC ADAPTOR, 185MM #CNP-2 P/N.804911

IMPA:617581

MTML UOM:PCE

Small Dia. Hydraulic Adaptor CNP-2 P/N 804911 for use with hand grease gun, L=185 mm, PT 1/8" Male (R)

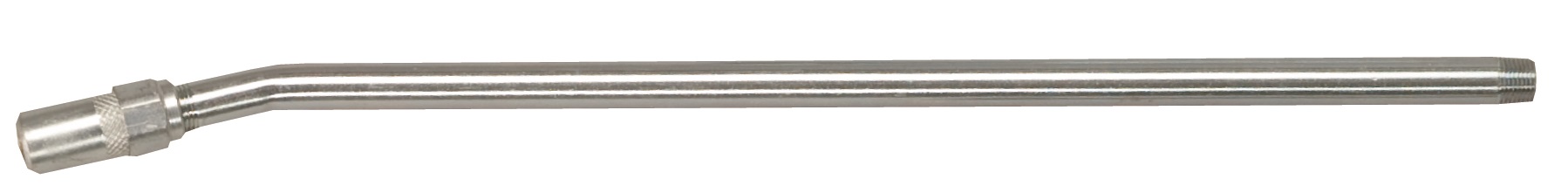

617582 LONG HYDRAULIC ADAPTOR 335MM, #CNP-13 P/N.804912

IMPA:617582

MTML UOM:PCE

Long Hydraulic Adaptor CNP-13 P/N 804912, L=335 mm PT 1/8" Male (R)

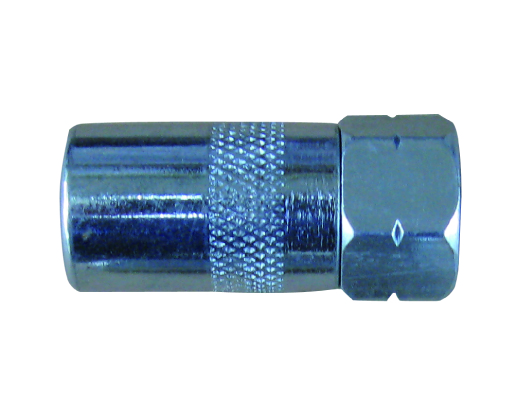

617583 STANDARD HYDRAULIC COUPLER, #CNP-1H P/N.686445

IMPA:617583

MTML UOM:PCE

Standard Hydraulic Coupler CNP-1H, P/N 686445, L=38.5 mm PT 1/8" Female (Rc)

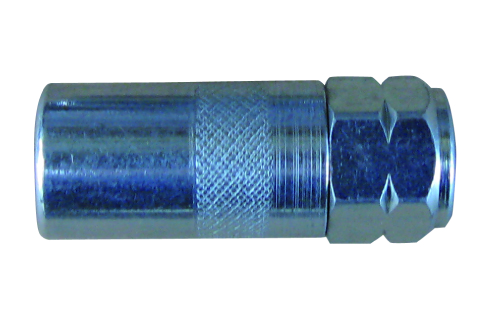

617584 SMALL DIAM HYDRAULIC COUPLER, #CNP-2H P/N.686446

IMPA:617584

MTML UOM:PCE

Small Dia. Hydraulic Coupler CNP-2H P/N 686446, L=39 mm, PT 1/8" Female (Rc)

617585 HYDRAULIC COUPLER EXTENSION, HOSE 420MM #SPK-5 P/N.850392

IMPA:617585

MTML UOM:PCE

Hydraulic Coupler Extension Hose SPK-5 P/N 850392, L=420 mm
