Pipe Couplings Flexible - Hot Rolled Steel

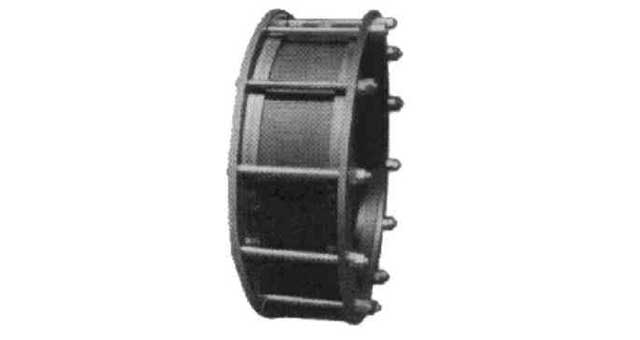

734941 PIPE COUPLING FLEX 6" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734941
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734942 PIPE COUPLING FLEX 8 M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734942
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734943 PIPE COUPLING FLEX 10" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734943
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734944 PIPE COUPLING FLEX 12" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734944
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734945 PIPE COUPLING FLEX 14" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734945
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734946 PIPE COUPLING FLEX 16" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734946
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734947 PIPE COUPLING FLEX 18" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734947
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734948 PIPE COUPLING FLEX 20" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734948
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734949 PIPE COUPLING FLEX 22" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734949
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734950 PIPE COUPLING FLEX 24" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734950
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734951 PIPE COUPLING FLEX 26" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734951
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734952 PIPE COUPLING FLEX 28" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734952
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734953 PIPE COUPLING FLEX 30" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734953
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734954 PIPE COUPLING FLEX 32" M.RING, L204MM(STYLE 11) HOT RLD STEEL
IMPA:734954
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734961 PIPE COUPLING FLEX 6" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734961
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734962 PIPE COUPLING FLEX 8" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734962
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734963 PIPE COUPLING FLEX 10" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734963
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734964 PIPE COUPLING FLEX 12" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734964
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734965 PIPE COUPLING FLEX 14" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734965
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734966 PIPE COUPLING FLEX 16" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734966
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734967 PIPE COUPLING FLEX 18" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734967
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734968 PIPE COUPLING FLEX 20" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734968
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734969 PIPE COUPLING FLEX 22" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734969
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734970 PIPE COUPLING FLEX 24" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734970
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734971 PIPE COUPLING FLEX 26" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734971
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734972 PIPE COUPLING FLEX 28" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734972
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734973 PIPE COUPLING FLEX 30" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734973
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734974 PIPE COUPLING FLEX 32" M.RING, L224MM(STYLE 11) HOT RLD STEEL
IMPA:734974
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734981 PIPE COUPLING FLEX 6" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734981
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734982 PIPE COUPLING FLEX 8" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734982
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734983 PIPE COUPLING FLEX 10" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734983
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734984 PIPE COUPLING FLEX 12" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734984
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734985 PIPE COUPLING FLEX 14" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734985
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734986 PIPE COUPLING FLEX 16" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734986
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734987 PIPE COUPLING FLEX 18" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734987
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734988 PIPE COUPLING FLEX 20" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734988
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734989 PIPE COUPLING FLEX 22" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734989
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734990 PIPE COUPLING FLEX 24" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734990
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734991 PIPE COUPLING FLEX 26" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734991
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734992 PIPE COUPLING FLEX 28" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734992
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734993 PIPE COUPLING FLEX 30" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734993
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
734994 PIPE COUPLING FLEX 32" M.RING, L254MM(STYLE 11) HOT RLD STEEL
IMPA:734994
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735001 PIPE COUPLING FLEX 6" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735001
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735002 PIPE COUPLING FLEX 8" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735002
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735003 PIPE COUPLING FLEX 10" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735003
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735004 PIPE COUPLING FLEX 12" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735004
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735005 PIPE COUPLING FLEX 14" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735005
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735006 PIPE COUPLING FLEX 16" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735006
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735007 PIPE COUPLING FLEX 18" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735007
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735008 PIPE COUPLING FLAX 20" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735008
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735009 PIPE COUPLING FLEX 22" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735009
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735010 PIPE COUPLING FLEX 24" M.RING, L178MM(STYLE 10)HOT RLD STEEL
IMPA:735010
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735011 PIPE COUPLING FLEX 26" M.RING, L178MM(STYLE 10) HOT RLD STEEL
IMPA:735011
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735012 PIPE COUPLING FLEX 28" M.RING, L178MM(STYLE 10) HOT RLD STEEL
IMPA:735012
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735013 PIPE COUPLING FLEX 30" M.RING, L178MM(STYLE 10) HOT RLD STEEL
IMPA:735013
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
735014 PIPE COUPLING FLEX 32" M.RING, L178MM(STYLE 10) HOT RLD STEEL
IMPA:735014
MTML UOM:SET
Coupling joints, because of their greater flexibility and economy, are steadily replacing flanged pipe joints in today’s plant and marine applications. Unlike flanged joints, couplings not only eliminate the need for costly welding but also compensate for extreme degrees of pipe linear expansion, vibration, and laying deflection. From chemical plants to mammoth tankers, these couplings are utilized extensively throughout plant and marine piping. As a wide range of models is available, the most common models have been selected and described below.
1. Construction: As illustrated above, the most common models consist of a middle ring (1) two followers (2) two wedge gaskets (3) four bolts & nuts (4) and two stop bolts (5) Both the middle ring and the followers are made of hot rolled steel, and the wedge gaskets are made of natural or synthetic rubber. When the bolts are tightened, the followers press the gaskets against the spherical surface of the pipes and the tapered surface of the middle rings providing a leak-tight connection. When the expansion force of the pipes exceeds the wedging force, the pipes slide and deflect within the gaps between the outer surface of the pipes and the inner surface of the middle ring and followers.
2. Features: The structural design of these flexible pipe couplings offers easy and economical pipe jointing. Pipes can be jointed easily with the use of a spanner. Centering of the pipes and finish-grinding of the pipe sections is not required. Compared with flanged pipe joints, these pipe couplings assure economical pipe jointing without the need for costly welding or any other additional procedures. Usually absorbs 65 – 135 mm of pipe linear expansion (specially available models absorb more than 200 mm of linear expansion) and a considerable degree of pipe vibration as well. Also, they allow for joint deflection up to 6 degrees and can join pipes of different material and/or diameter.
3. How to order: When ordering, please specify the following points. 1. Kind of pipes to be connected (steel, cast iron, vinyl, etc) 2. Pipe outside diameter.....mm 3. Working pressure.....kgf/cm2 4. Kind of liquid or gas of the line content (desired gasket material) 5. Rust preventive treatments (paint)
Flexible Pipe Couplings for Plain End Pipes: 1. Hot Rolled Steel Middle Ring & Follower: These products are all formed from special section steel. As it is designed and built to withstand severe operating conditions on board, no special care is necessary for any applications.
Couplings of sizes other than those listed above are also available upon request. Seawater resistant couplings made of a special alloy steel are also available upon request. The seawater couplings have the same dimensions and shape as those listed above. When ordering, please specify the nominal size.
© 2025 ShipServ Limited
