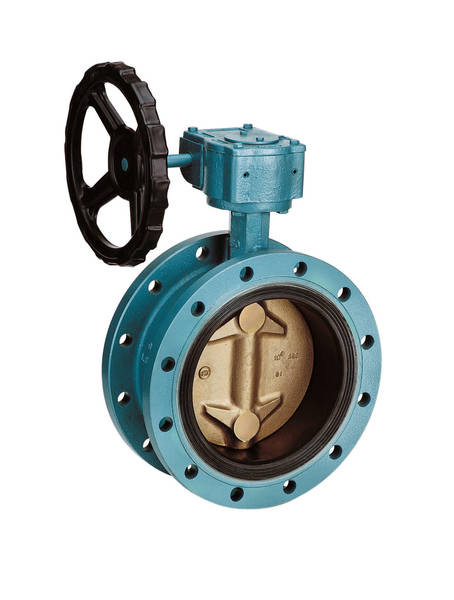

756313 BUTTERFLY VALVE DIN CAST IRON, PN10 SHORT #4620 500MM

Ductile cast iron butterfly valve, double-flanged type with centric disc, one piece shaft supported by bronze radial bearings, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The double flanged body is suitable for mounting between flanges acc. to DIN PN10 or PN16. Face to face dimensions are acc. to ISO5752 /EN558 basic series 13, DIN3202 F16 and BS5155. Valve is also suitable for end of line applications. For easy mounting of both manual and automatic actuators the valve is executed with a topflange according to the ISO5211 standard. Further applications of series 46 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 16 bar. Features: - Connections; Flange - Body material; Cast iron, nodular - Valve butterfly material; Bronze - Operation; None
