Butterfly Valves DIN Monoflange Type #6110

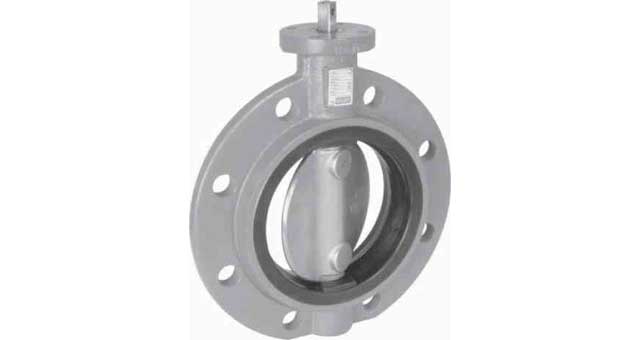

756356 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 50MM

IMPA:756356

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756357 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 65MM

IMPA:756357

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756358 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 80MM

IMPA:756358

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756359 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 100MM

IMPA:756359

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756360 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 125MM

IMPA:756360

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756361 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 150MM

IMPA:756361

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756362 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 200MM

IMPA:756362

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756363 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 250MM

IMPA:756363

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756364 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 300MM

IMPA:756364

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756365 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 350MM

IMPA:756365

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.

756366 BUTTERFLY VALVE DIN CAST IRON, MONOFLANGE #6110 400MM

IMPA:756366

MTML UOM:PCE

Ductile cast iron butterfly valve, monoflange type with centric disc, one piece shaft supported by bronze radial bearings for smooth operation, rubber lined body. The rubber liner is vulcanized integrally to body and bearings ensuring reduced torque and a long lifetime. This liner extends along the valve faces, eliminating the use of gaskets. The body with monoflange is suitable for mounting between flanges according to DIN PN10. Due to the monoflange design, this valve can be used as end of line valve. Face to face dimensions are according to ISO5752/EN558 basic series 16, API 609, DIN 3202 K3 and BS5155. For easy adaption of both manual and automatic actuators the valve is executed with a topflange according to ISO5211 standard. Further applications of series 60 butterfly valves can be found amongst others in general industrial and maritime systems for media such as (ballast) water, gases, hydrocarbons and light corrosive media up to a maximum of 10 bar.
