Pressure Reducing Valves Red Brass with Socket Joint

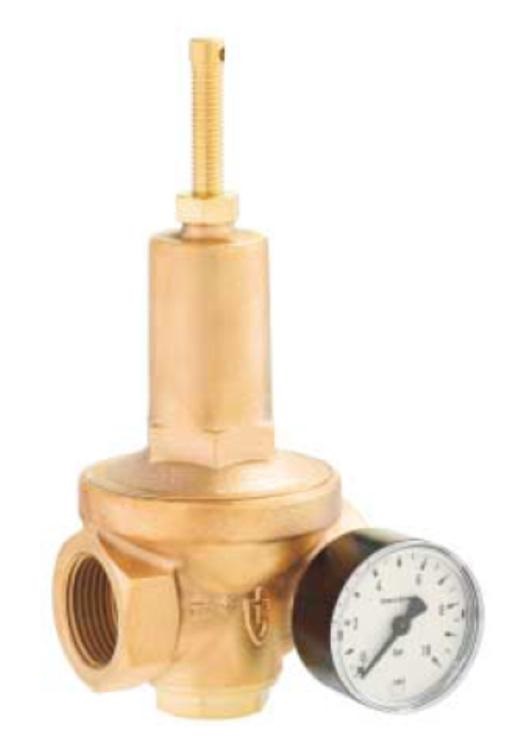

756571 VALVE PRESSURE REDUCE DIN #683, RED BRASS 3/8" SOCKET JOINT

IMPA:756571

MTML UOM:PCE

Marine Type Approvals held for these valves: American Bureau of Shipping, Bureau Veritas, Germanischer Lloyd, Lloyds Register. Pressure reducer with socket joint made of red brass with pressure-relieved single seat valve. Suitable for compressed air and neutral gas, water, neutral and non-sticking liquids. Body with G 1/4” connection for pressure gauge on both sides. Primary pressure: up to 50 bar (DN32-30 bar), Secondary pressure: 1.5 to 10 bar, Biggest reduction relation 10:1

756572 VALVE PRESSURE REDUCE DIN #683, RED BRASS 1/2" SOCKET JOINT

IMPA:756572

MTML UOM:PCE

Marine Type Approvals held for these valves: American Bureau of Shipping, Bureau Veritas, Germanischer Lloyd, Lloyds Register. Pressure reducer with socket joint made of red brass with pressure-relieved single seat valve. Suitable for compressed air and neutral gas, water, neutral and non-sticking liquids. Body with G 1/4” connection for pressure gauge on both sides. Primary pressure: up to 50 bar (DN32-30 bar), Secondary pressure: 1.5 to 10 bar, Biggest reduction relation 10:1

756573 VALVE PRESSURE REDUCE DIN #683, RED BRASS 3/4" SOCKET JOINT

IMPA:756573

MTML UOM:PCE

Marine Type Approvals held for these valves: American Bureau of Shipping, Bureau Veritas, Germanischer Lloyd, Lloyds Register. Pressure reducer with socket joint made of red brass with pressure-relieved single seat valve. Suitable for compressed air and neutral gas, water, neutral and non-sticking liquids. Body with G 1/4” connection for pressure gauge on both sides. Primary pressure: up to 50 bar (DN32-30 bar), Secondary pressure: 1.5 to 10 bar, Biggest reduction relation 10:1

756574 VALVE PRESSURE REDUCE DIN #683, RED BRASS 1" SOCKET JOINT

IMPA:756574

MTML UOM:PCE

Marine Type Approvals held for these valves: American Bureau of Shipping, Bureau Veritas, Germanischer Lloyd, Lloyds Register. Pressure reducer with socket joint made of red brass with pressure-relieved single seat valve. Suitable for compressed air and neutral gas, water, neutral and non-sticking liquids. Body with G 1/4” connection for pressure gauge on both sides. Primary pressure: up to 50 bar (DN32-30 bar), Secondary pressure: 1.5 to 10 bar, Biggest reduction relation 10:1

756575 VALVE PRESSURE REDUCE DIN #683, RED BRASS 1-1/4" SOCKET JOINT

IMPA:756575

MTML UOM:PCE

Marine Type Approvals held for these valves: American Bureau of Shipping, Bureau Veritas, Germanischer Lloyd, Lloyds Register. Pressure reducer with socket joint made of red brass with pressure-relieved single seat valve. Suitable for compressed air and neutral gas, water, neutral and non-sticking liquids. Body with G 1/4” connection for pressure gauge on both sides. Primary pressure: up to 50 bar (DN32-30 bar), Secondary pressure: 1.5 to 10 bar, Biggest reduction relation 10:1
