Needle Valves Brass w/Corrugated Hose Ends

752136 NEEDLE VALVE STRAIGHT BRASS, BOTH HOSE ENDS 8X1/4

IMPA:752136

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752137 NEEDLE VALVE STRAIGHT BRASS, BOTH HOSE ENDS 9.5X3/8

IMPA:752137

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752138 NEEDLE VALVE STRAIGHT BRASS, BOTH HOSE ENDS 11X3/8

IMPA:752138

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

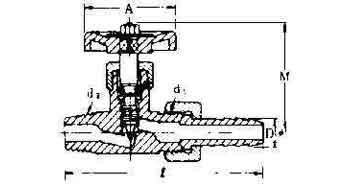

752141 NEEDLE VALVE STRAIGHT BRASS, HOSE END&MALE THREAD 8X1/8

IMPA:752141

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752142 NEEDLE VALVE STRAIGHT BRASS, HOSE END&MALE THREAD 8X1/4

IMPA:752142

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752143 NEEDLE VALVE STRAIGHT BRASS, HOSE END&MALE THREAD 9.5X1/4

IMPA:752143

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752144 NEEDLE VALVE STRAIGHT BRASS, HOSE END&MALE THREAD 11X1/4

IMPA:752144

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752146 NEEDLE VALVE ANGLE BRASS, HOSE END&MALE THREAD 8X1/8

IMPA:752146

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752147 NEEDLE VALVE ANGLE BRASS, HOSE END&MALE THREAD 8X1/4

IMPA:752147

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752148 NEEDLE VALVE ANGLE BRASS, HOSE END&MALE THREAD 9.5X1/4

IMPA:752148

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.

752149 NEEDLE VALVE ANGLE BRASS, HOSE END&MALE THREAD 11X1/4

IMPA:752149

MTML UOM:PCE

For controlling flow of liquids or gases requiring close regulating. Brass rod material made body and bonnet except for the gland “O” rings. The applicable temperature will be –20oC to 100oC and the maximum pressure will be 1.47 MPa [15 kgf/cm2]. Recommended for use at less than 80% of maximum load pressure at temperatures between 80oC to 100oC.
