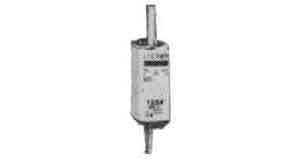

Cartridge Fuse Links HRC "00"

793801 FUSE NH (HRC) SIZE-00 AC500V, 6A

IMPA:793801

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793802 FUSE NH (HRC) SIZE-00 AC500V, 10A

IMPA:793802

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793803 FUSE NH (HRC) SIZE-00 AC500V, 16A

IMPA:793803

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793804 FUSE NH (HRC) SIZE-00 AC500V, 20A

IMPA:793804

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793805 FUSE NH (HRC) SIZE-00 AC500V, 25A

IMPA:793805

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793806 FUSE NH (HRC) SIZE-00 AC500V, 35A

IMPA:793806

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793807 FUSE NH (HRC) SIZE-00 AC500V, 50A

IMPA:793807

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793808 FUSE NH (HRC) SIZE-00 AC500V, 63A

IMPA:793808

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793809 FUSE NH (HRC) SIZE-00 AC500V, 80A

IMPA:793809

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793810 FUSE NH (HRC) SIZE-00 AC500V, 100A

IMPA:793810

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793811 FUSE NH (HRC) SIZE-00 AC500V, 125A

IMPA:793811

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.

793812 FUSE NH (HRC) SIZE-00 AC500V, 160A

IMPA:793812

MTML UOM:PCE

Low voltage high breaking capacity fuses. LV, HRC fuse links 500V AC for line protection, low-loss. Size 00 - 3 in accordance with DIN 57636 Part 2/VDE 0636 Part 2, class of operation gL IEC 269-2, class of operation gl. Knife contacts, ceramic insulating body, and indicator on the front plate.
