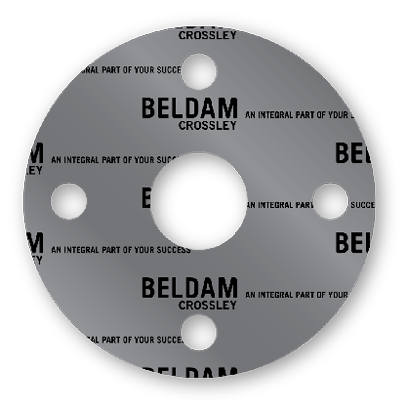

Jointing Sheets Beldam Universal Non-asbestos #172

811280 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 0.5X1500X1500MM

IMPA:811280

MTML UOM:ST

High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.

811281 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 0.75X1500X1500MM

IMPA:811281

MTML UOM:ST

High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.

811282 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 1.0X1500X1500MM

IMPA:811282

MTML UOM:ST

High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.

811283 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 1.5X1500X1500MM

IMPA:811283

MTML UOM:ST

High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.

811284 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 2.0X1500X1500MM

IMPA:811284

MTML UOM:ST

High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.

811285 SHEET PACKING NON-ASBESTOS, PILOTSEAL #172 3.0X1500X1500MM

IMPA:811285

MTML UOM:ST

High quality compressed jointing manufactured from heat resistant fibre and polymer. The anti-stick graphite silver finish facilities easy gasket removal and flange cleaning. Performance: Max. Temperature 475oC, Max. Pressure 13.8 N/mm2 (2000 psi), Tensile Strength 10.3 N/mm2 (1500 psi), Density 1.4 gm/cc Applications: For sealing against steam, water, oils, gases, dilute acids and alkalis.
