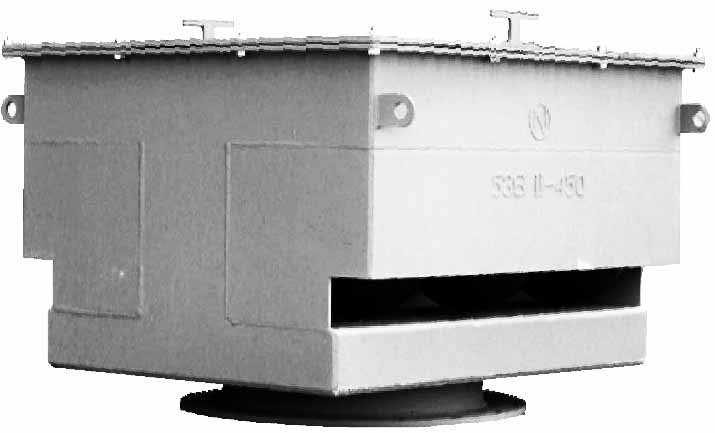

Air Vent Heads 53BW (with Screen)

872329 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53BIIW-300 300MM

IMPA:872329

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53BⅡW (with Screen)

872330 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53BIIW-350 350MM

IMPA:872330

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53BⅡW (with Screen)

872331 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53BIIW-400 400MM

IMPA:872331

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53BⅡW (with Screen)

872332 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53BIIW-450 450MM

IMPA:872332

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53BⅡW (with Screen)
