Air Vent Heads 53CW (with Screen)

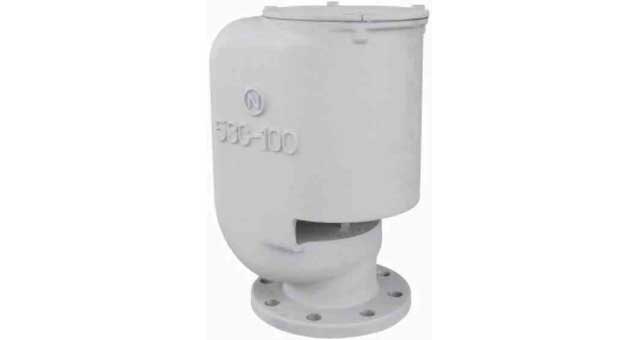

872338 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-50 50MM

IMPA:872338

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872339 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-65 65MM

IMPA:872339

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872340 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-80 80MM

IMPA:872340

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872341 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-100 100MM

IMPA:872341

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872342 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-125 125MM

IMPA:872342

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872343 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-150 150MM

IMPA:872343

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872363 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-200 200MM

IMPA:872363

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)

872364 AIR VENT HEAD JIS 5KG FLANGED, WITH SCREEN #53CW-250 250MM

IMPA:872364

MTML UOM:PCE

Automatic closing system by disk float, and applicable to ballast tanks or oil tanks, etc. Main body is made of grey iron casting (FC-200). Connection flanges specifications are based on JIS 5 kgf/cm2. Application of IACS (International Association of Classification Societies) unified requirements P3 (1991), and approved by NK, ABS, LRS, DNV and BV. Please specify the flange size to be connected with type of pipe head when ordering. Model: 53CW (with Screen)
