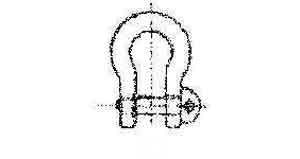

M Class Bow Shackles - BD with Eye Bolt

233981 SHACKLE BOW EYE BOLT UNGALV, JIS-M-BD 16MM SWL 1.2TON

IMPA:233981

MTML UOM:PCE

A weldless, drop forged, carbon steel shackle with an eye bolt which has metric coarse threads on the end. Please specify Ungalvanized (Black) shackle or Galvanized shackle is required. Ungalvanized. Size: Body dia: 16mm, Opening: 32mm, Screw Pin Thread: M20, Clear Length: 69mm, Pin dia: 21mm, S.W.L: 1.2ton.

233982 SHACKLE BOW EYE BOLT UNGALV, JIS-M-BD 18MM SWL 1.3TON

IMPA:233982

MTML UOM:PCE

A weldless, drop forged, carbon steel shackle with an eye bolt which has metric coarse threads on the end. Please specify Ungalvanized (Black) shackle or Galvanized shackle is required. Ungalvanized. Size: Body dia: 18mm, Opening: 36mm, Screw Pin Thread: M20, Clear Length: 89mm, Pin dia: 21mm, S.W.L: 1.3ton.

233983 SHACKLE BOW EYE BOLT UNGALV, JIS-M-BD 20MM SWL 1.8TON

IMPA:233983

MTML UOM:PCE

A weldless, drop forged, carbon steel shackle with an eye bolt which has metric coarse threads on the end. Please specify Ungalvanized (Black) shackle or Galvanized shackle is required. Ungalvanized. Size: Body dia: 20mm, Opening: 40mm, Screw Pin Thread: M24, Clear Length: 100mm, Pin dia: 24mm, S.W.L: 1.8ton.

233986 SHACKLE BOW EYE BOLT GALV, JIS-M-BD 16MM SWL 1.2TON

IMPA:233986

MTML UOM:PCE

A weldless, drop forged, carbon steel shackle with an eye bolt which has metric coarse threads on the end. Please specify Ungalvanized (Black) shackle or Galvanized shackle is required. Galvanized. Size: Body dia: 16mm, Opening: 32mm, Screw Pin Thread: M20, Clear Length: 69mm, Pin dia: 21mm, S.W.L: 1.2ton.

233987 SHACKLE BOW EYE BOLT GALV, JIS-M-BD 18MM SWL 1.3TON

IMPA:233987

MTML UOM:PCE

A weldless, drop forged, carbon steel shackle with an eye bolt which has metric coarse threads on the end. Please specify Ungalvanized (Black) shackle or Galvanized shackle is required. Galvanized. Size: Body dia: 18mm, Opening: 36mm, Screw Pin Thread: M20, Clear Length: 89mm, Pin dia: 21mm, S.W.L: 1.3ton.

233988 SHACKLE BOW EYE BOLT GALV, JIS-M-BD 20MM SWL 1.8TON

IMPA:233988

MTML UOM:PCE

A weldless, drop forged, carbon steel shackle with an eye bolt which has metric coarse threads on the end. Please specify Ungalvanized (Black) shackle or Galvanized shackle is required. Galvanized. Size: Body dia: 20mm, Opening: 40mm, Screw Pin Thread: M24, Clear Length: 100mm, Pin dia: 24mm, S.W.L: 1.8ton.
