M Class Straight Shackles - SD with Eye Bolt

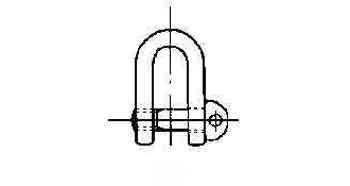

233831 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 30MM SWL 4.0T

IMPA:233831

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 30mm, Opening: 60mm, Screw Pin Thread: M36, Clear Length: 102mm, Pin dia: 36mm, S.W.L: 4ton.

233832 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 34MM SWL 5.0T

IMPA:233832

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 34mm, Opening: 68mm, Screw Pin Thread: M42, Clear Length: 115mm, Pin dia: 42mm, S.W.L: 5ton.

233833 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 38MM SWL 6.3T

IMPA:233833

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 38mm, Opening: 76mm, Screw Pin Thread: M45, Clear Length: 129mm, Pin dia: 45mm, S.W.L: 6.3ton.

233834 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 40MM SWL 7.0T

IMPA:233834

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 40mm, Opening: 80mm, Screw Pin Thread: M48, Clear Length: 136mm, Pin dia: 48mm, S.W.L: 7ton.

233835 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 42MM SWL 8.0T

IMPA:233835

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 42mm, Opening: 84mm, Screw Pin Thread: M48, Clear Length: 142mm, Pin dia: 51mm, S.W.L: 8ton.

233836 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 48MM SWL 10TON

IMPA:233836

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 48mm, Opening: 96mm, Screw Pin Thread: M56, Clear Length: 163mm, Pin dia: 58mm, S.W.L: 10ton.

233837 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 52MM SWL 12.5T

IMPA:233837

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 52mm, Opening: 104mm, Screw Pin Thread: M56, Clear Length: 177mm, Pin dia: 62mm, S.W.L: 12.5ton.

233838 SHACKLE STRAIGHT EYE BOLT, UNGALV JIS-M-SD 58MM SWL 16TON

IMPA:233838

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Ungalvanized. Size: Body dia: 58mm, Opening: 116mm, Screw Pin Thread: M64, Clear Length: 198mm, Pin dia: 68mm, S.W.L: 16ton.

233841 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 16MM SWL 1.0TON

IMPA:233841

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 16mm, Opening: 32mm, Screw Pin Thread: M20, Clear Length: 53mm, Pin dia: 21mm, S.W.L: 1ton

233842 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 20MM SWL 1.6TON

IMPA:233842

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 20mm, Opening: 40mm, Screw Pin Thread: M24, Clear Length: 68mm, Pin dia: 24mm, S.W.L: 1.6ton.

233843 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 22MM SWL 2.0TON

IMPA:233843

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 22mm, Opening: 44mm, Screw Pin Thread: M27, Clear Length: 74mm, Pin dia: 27mm, S.W.L: 2ton.

233844 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 24MM SWL 2.5TON

IMPA:233844

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 24mm, Opening: 48mm, Screw Pin Thread: M27, Clear Length: 81mm, Pin dia: 29mm, S.W.L: 2.5ton.

233845 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 26MM SWL 3.15TON

IMPA:233845

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 26mm, Opening: 52mm, Screw Pin Thread: M30, Clear Length: 88mm, Pin dia: 32mm, S.W.L: 3.15ton.

233846 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 28MM SWL 3.5TON

IMPA:233846

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 28mm, Opening: 56mm, Screw Pin Thread: M33, Clear Length: 95mm, Pin dia: 34mm, S.W.L: 3.5ton.

233847 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 30MM SWL 4.0TON

IMPA:233847

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 30mm, Opening: 60mm, Screw Pin Thread: M36, Clear Length: 102mm, Pin dia: 36mm, S.W.L: 4ton.

233848 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 34MM SWL 5.0TON

IMPA:233848

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 34mm, Opening: 68mm, Screw Pin Thread: M42, Clear Length: 115mm, Pin dia: 42mm, S.W.L: 5ton.

233849 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 38MM SWL 6.3TON

IMPA:233849

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 38mm, Opening: 76mm, Screw Pin Thread: M45, Clear Length: 129mm, Pin dia: 45mm, S.W.L: 6.3ton.

233850 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 40MM SWL 7.0TON

IMPA:233850

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 40mm, Opening: 80mm, Screw Pin Thread: M48, Clear Length: 136mm, Pin dia: 48mm, S.W.L: 7ton.

233851 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 42MM SWL 8.0TON

IMPA:233851

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 42mm, Opening: 84mm, Screw Pin Thread: M48, Clear Length: 142mm, Pin dia: 51mm, S.W.L: 8ton.

233852 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 48MM SWL 10.0TON

IMPA:233852

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 48mm, Opening: 96mm, Screw Pin Thread: M56, Clear Length: 163mm, Pin dia: 58mm, S.W.L: 10ton.

233853 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 52MM SWL 12.5TON

IMPA:233853

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 52mm, Opening: 104mm, Screw Pin Thread: M56, Clear Length: 177mm, Pin dia: 62mm, S.W.L: 12.5ton.

233854 SHACKLE STRAIGHT EYE BOLT, GALV JIS-M-SD 58MM SWL 16.0TON

IMPA:233854

MTML UOM:PCE

A drop forged, carbon steel shackle with an eye bolt which has metric coarse threads at one end. Please specify Ungalvanized (Black) or Galvanized shackles is required. Galvanized. Size: Body dia: 58mm, Opening: 116mm, Screw Pin Thread: M64, Clear Length: 198mm, Pin dia: 68mm, S.W.L: 16ton.
