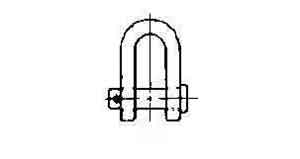

M Class Straight Shackles - SA with Flat Head Pin

233701 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 34MM SWL 7TON

IMPA:233701

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 34mm, Opening: 50mm, Clear Length: 116mm, Pin dia: 40mm, S.W.L: 7ton.

233702 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 36MM SWL 8TON

IMPA:233702

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 36mm, Opening: 54mm, Clear Length: 123mm, Pin dia: 42mm, S.W.L: 8ton.

233703 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 38MM SWL 9TON

IMPA:233703

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 38mm, Opening: 57mm, Clear Length: 129mm, Pin dia: 46mm, S.W.L: 9ton.

233704 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 40MM SWL 10TON

IMPA:233704

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 40mm, Opening: 60mm, Clear Length: 136mm, Pin dia: 48mm, S.W.L: 10ton.

233705 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 42MM SWL 11TON

IMPA:233705

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 42mm, Opening: 63mm, Clear Length: 142mm, Pin dia: 51mm, S.W.L: 11ton.

233706 SHACKLE STRAIGHT FLAT HEAD PIN, UNG. JIS-M-SA 44MM SWL 12.5TON

IMPA:233706

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 44mm, Opening: 66mm, Clear Length: 149mm, Pin dia: 54mm, S.W.L: 12.5ton.

233707 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 46MM SWL 13TON

IMPA:233707

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 46mm, Opening: 68mm, Clear Length: 156mm, Pin dia: 56mm, S.W.L: 13ton.

233708 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 48MM SWL 14TON

IMPA:233708

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 48mm, Opening: 72mm, Clear Length: 163mm, Pin dia: 58mm, S.W.L: 14ton.

233709 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 50MM SWL 16TON

IMPA:233709

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 50mm, Opening: 75mm, Clear Length: 170mm, Pin dia: 60mm, S.W.L: 16ton.

233710 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 55MM SWL 18TON

IMPA:233710

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 55mm, Opening: 83mm, Clear Length: 187mm, Pin dia: 65mm, S.W.L: 18ton.

233711 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 60MM SWL 20TON

IMPA:233711

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 60mm, Opening: 90mm, Clear Length: 205mm, Pin dia: 70mm, S.W.L: 20ton.

233712 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 65MM SWL 25TON

IMPA:233712

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 65mm, Opening: 98mm, Clear Length: 221mm, Pin dia: 77mm, S.W.L: 25ton.

233713 SHACKLE STRAIGHT FLAT HEAD PIN, UNG. JIS-M-SA 70MM SWL 31.5TON

IMPA:233713

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 70mm, Opening: 105mm, Clear Length: 238mm, Pin dia: 83mm, S.W.L: 31.5ton.

233714 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 75MM SWL 35TON

IMPA:233714

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 75mm, Opening: 112mm, Clear Length: 255mm, Pin dia: 90mm, S.W.L: 35ton.

233715 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 80MM SWL 40TON

IMPA:233715

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 80mm, Opening: 120mm, Clear Length: 272mm, Pin dia: 96mm, S.W.L: 40ton.

233716 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 85MM SWL 45TON

IMPA:233716

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 85mm, Opening: 128mm, Clear Length: 289mm, Pin dia: 102mm, S.W.L: 45ton.

233717 SHACKLE STRAIGHT FLAT HEAD PIN, UNGALV JIS-M-SA 90MM SWL 50TON

IMPA:233717

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Ungalvanized. Size: Body dia: 90mm, Opening: 135mm, Clear Length: 306mm, Pin dia: 108mm, S.W.L: 50ton.

233721 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 34MM SWL 7TON

IMPA:233721

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 34mm, Opening: 50mm, Clear Length: 116mm, Pin dia: 40mm, S.W.L: 7ton.

233722 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 36MM SWL 8TON

IMPA:233722

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 36mm, Opening: 54mm, Clear Length: 123mm, Pin dia: 42mm, S.W.L: 8ton.

233723 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 38MM SWL 9TON

IMPA:233723

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 38mm, Opening: 57mm, Clear Length: 129mm, Pin dia: 46mm, S.W.L: 9ton.

233724 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 40MM SWL 10TON

IMPA:233724

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 40mm, Opening: 60mm, Clear Length: 136mm, Pin dia: 48mm, S.W.L: 10ton.

233725 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 42MM SWL 11TON

IMPA:233725

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 42mm, Opening: 63mm, Clear Length: 142mm, Pin dia: 51mm, S.W.L: 11ton.

233726 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 44MM SWL 12.5TON

IMPA:233726

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 44mm, Opening: 66mm, Clear Length: 149mm, Pin dia: 54mm, S.W.L: 12.5ton.

233727 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 46MM SWL 13TON

IMPA:233727

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 46mm, Opening: 68mm, Clear Length: 156mm, Pin dia: 56mm, S.W.L: 13ton.

233728 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 48MM SWL 14TON

IMPA:233728

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 48mm, Opening: 72mm, Clear Length: 163mm, Pin dia: 58mm, S.W.L: 14ton.

233729 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 50MM SWL 16TON

IMPA:233729

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 50mm, Opening: 75mm, Clear Length: 170mm, Pin dia: 60mm, S.W.L: 16ton.

233730 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 55MM SWL 18TON

IMPA:233730

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 55mm, Opening: 83mm, Clear Length: 187mm, Pin dia: 65mm, S.W.L: 18ton.

233731 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 60MM SWL 20TON

IMPA:233731

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 60mm, Opening: 90mm, Clear Length: 205mm, Pin dia: 70mm, S.W.L: 20ton.

233732 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 65MM SWL 25TON

IMPA:233732

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 65mm, Opening: 98mm, Clear Length: 221mm, Pin dia: 77mm, S.W.L: 25ton.

233733 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 70MM SWL 31.5TON

IMPA:233733

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 70mm, Opening: 105mm, Clear Length: 238mm, Pin dia: 83mm, S.W.L: 31.5ton.

233734 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 75MM SWL 35TON

IMPA:233734

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 75mm, Opening: 112mm, Clear Length: 255mm, Pin dia: 90mm, S.W.L: 35ton.

233735 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 80MM SWL 40TON

IMPA:233735

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 80mm, Opening: 120mm, Clear Length: 272mm, Pin dia: 96mm, S.W.L: 40ton.

233736 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 85MM SWL 45TON

IMPA:233736

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 85mm, Opening: 128mm, Clear Length: 289mm, Pin dia: 102mm, S.W.L: 45ton.

233737 SHACKLE STRAIGHT FLAT HEAD PIN, GALV JIS-M-SA 90MM SWL 50TON

IMPA:233737

MTML UOM:PCE

Drop forged carbon steel shackle with flat head pin and split pin hole on the other end. Used for heavy work. Please specify Ungalvanized (Black) or Galvanized shackle is required. Galvanized. Size: Body dia: 90mm, Opening: 135mm, Clear Length: 306mm, Pin dia: 108mm, S.W.L: 50ton.
