Shackles Screw Pin Countersink

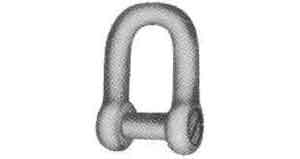

230363 SHACKLE COUNTERSINK BLACK 9MM

IMPA:230363

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Black. Size: Body dia: 9mm, Opening: 18mm, Clear Length: 32mm, Pin dia: 9mm, S.W.L: 0.3ton.

230365 SHACKLE COUNTERSINK BLACK 16MM

IMPA:230365

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Black. Size: Body dia: 16mm, Opening: 32mm, Clear Length: 52mm, Pin dia: 16mm, S.W.L: 0.8ton.

230367 SHACKLE COUNTERSINK BLACK 22MM

IMPA:230367

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Black. Size: Body dia: 22mm, Opening: 44mm, Clear Length: 75mm, Pin dia: 22mm, S.W.L: 1.5ton.

230369 SHACKLE COUNTERSINK BLACK 28MM

IMPA:230369

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Black. Size: Body dia: 28mm, Opening: 43mm, Clear Length: 95mm, Pin dia: 34mm, S.W.L: 4.8ton.

230371 SHACKLE COUNTERSINK BLACK 38MM

IMPA:230371

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Black. Size: Body dia: 38mm, Opening: 57mm, Clear Length: 129mm, Pin dia: 46mm, S.W.L: 9ton.

230384 SHACKLE COUNTERSINK GALV 12MM

IMPA:230384

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Galvanized. Size: Body dia: 12mm, Opening: 26mm, Clear Length: 40mm, Pin dia: 12mm, S.W.L: 0.5ton.

230386 SHACKLE COUNTERSINK GALV 19MM

IMPA:230386

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Galvanized. Size: Body dia: 19mm, Opening: 38mm, Clear Length: 64mm, Pin dia: 19mm, S.W.L: 1ton.

230388 SHACKLE COUNTERSINK GALV 25MM

IMPA:230388

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Galvanized. Size: Body dia: 25mm, Opening: 50mm, Clear Length: 83mm, Pin dia: 25mm, S.W.L: 2ton.

230390 SHACKLE COUNTERSINK GALV 32MM

IMPA:230390

MTML UOM:PCE

Made of drop forged steel with countersink and slotted pins. The shackle pins are also galvanized above the threading. When ordering, please specify whether galvanized or black shackles are required. Galvanized. Size: Body dia: 32mm, Opening: 48mm, Clear Length: 109mm, Pin dia: 38mm, S.W.L: 6.2ton.
