Shackles Bow BC Stainless Steel

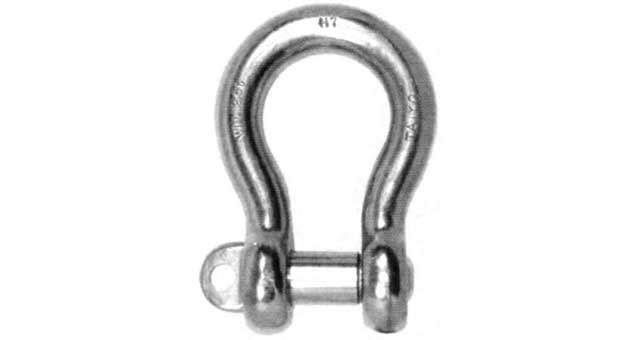

233601 SHACKLE BOW EYE BOLT S. STEEL, BC 6MM SWL 0.2TON

IMPA:233601

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 6mm, Opening: 11mm, Screw Pin Thread: M8, Clear Length: 20mm, Pin dia: 8mm, S.W.L: 0.2ton.

233602 SHACKLE BOW EYE BOLT S. STEEL, BC 8MM SWL 0.32TON

IMPA:233602

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 8mm, Opening: 14mm, Screw Pin Thread: M10, Clear Length: 27mm, Pin dia: 10mm, S.W.L: 0.32ton.

233603 SHACKLE BOW EYE BOLT S. STEEL, BC 10MM SWL 0.6TON

IMPA:233603

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 10mm, Opening: 17mm, Screw Pin Thread: M12, Clear Length: 34mm, Pin dia: 12mm, S.W.L: 0.6ton.

233604 SHACKLE BOW EYE BOLT S. STEEL, BC 12MM SWL 1.0TON

IMPA:233604

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 12mm, Opening: 20mm, Screw Pin Thread: M14, Clear Length: 40mm, Pin dia: 15mm, S.W.L: 1ton.

233605 SHACKLE BOW EYE BOLT S. STEEL, BC 14MM SWL 1.25TON

IMPA:233605

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 14mm, Opening: 24mm, Screw Pin Thread: M16, Clear Length: 47mm, Pin dia: 17mm, S.W.L: 1.25ton.

233606 SHACKLE BOW EYE BOLT S. STEEL, BC 16MM SWL 1.6TON

IMPA:233606

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 16mm, Opening: 26mm, Screw Pin Thread: M 18, Clear Length: 54mm, Pin dia: 19mm, S.W.L: 1.6ton.

233607 SHACKLE BOW EYE BOLT S. STEEL, BC 18MM SWL 2.0TON

IMPA:233607

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 18mm, Opening: 29mm, Screw Pin Thread: M 20, Clear Length: 61mm, Pin dia: 21mm, S.W.L: 2ton.

233608 SHACKLE BOW EYE BOLT S. STEEL, BC 20MM SWL 2.5TON

IMPA:233608

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 20mm, Opening: 31mm, Screw Pin Thread: M 24, Clear Length: 68mm, Pin dia: 24mm, S.W.L: 2.5ton.

233609 SHACKLE BOW EYE BOLT S. STEEL, BC 22MM SWL 3.15TON

IMPA:233609

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 22mm, Opening: 34mm, Screw Pin Thread: M 24, Clear Length: 75mm, Pin dia: 26mm, S.W.L: 3.15ton.

233610 SHACKLE BOW EYE BOLT S. STEEL, BC 24MM SWL 3.6TON

IMPA:233610

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 24mm, Opening: 39mm, Screw Pin Thread: M 30, Clear Length: 81mm, Pin dia: 30mm, S.W.L: 3.6ton.

233611 SHACKLE BOW EYE BOLT S. STEEL, BC 26MM SWL 4.0TON

IMPA:233611

MTML UOM:PCE

Stainless steel shackle with an eye bolt which has a metric coarse threaded end. Size: Body dia: 26mm, Opening: 41mm, Screw Pin Thread: M 30, Clear Length: 88mm, Pin dia: 32mm, S.W.L: 4ton.
