Gate Valves DIN Bronze PN10/16 #1317

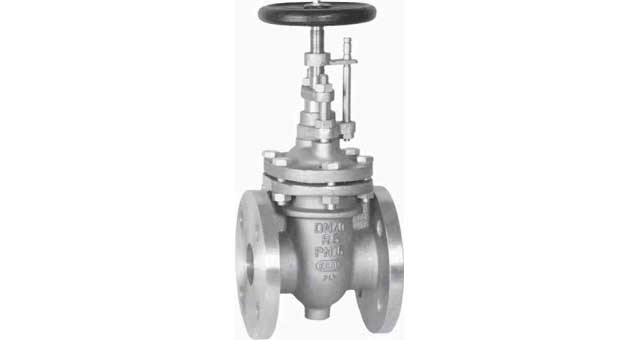

755551 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 40MM

IMPA:755551

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755552 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 50MM

IMPA:755552

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755553 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 65MM

IMPA:755553

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755554 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 80MM

IMPA:755554

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755555 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 100MM

IMPA:755555

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755556 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 125MM

IMPA:755556

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755557 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 150MM

IMPA:755557

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755559 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 200MM

IMPA:755559

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755560 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 250MM

IMPA:755560

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.

755561 GATE VALVE DIN BRONZE FLANGED, PN10/16 #1317 300MM

IMPA:755561

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 4/6/10/16, flat faced flanges acc. to DIN PN 10/16, bolted bonnet, position indicator, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 14 (DIN 3202-F4) Heavy duty construction with flat faced flanges A position indicator is a standard feature of the valve. Possible certification by various classification societies. Application: especially suitable for use in shipbuilding.
