Gate Valves DIN Carbon Steel PN10 #309

755682 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 50MM

IMPA:755682

MTML UOM:PCE

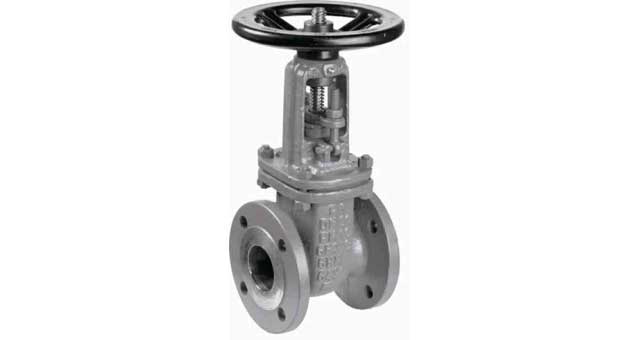

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755683 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 65MM

IMPA:755683

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755684 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 80MM

IMPA:755684

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755685 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 100MM

IMPA:755685

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755686 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 125MM

IMPA:755686

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755687 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 150MM

IMPA:755687

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755688 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 200MM

IMPA:755688

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755689 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 250MM

IMPA:755689

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.

755690 GATE VALVE DIN CARBON STEEL, FLANGED PN10 #309 300MM

IMPA:755690

MTML UOM:PCE

Cast steel gate valves with stainless steel seat, pressure rating PN 16, flanged ends acc. to DIN PN 16, bolted bonnet with yoke, outside screwed stem and yoke, rising stem, non-rising handwheel, flexible wedge, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: suitable for general use within the specified pressure and temperature range.
