Gate Valves DIN Cast Iron PN10 #2406

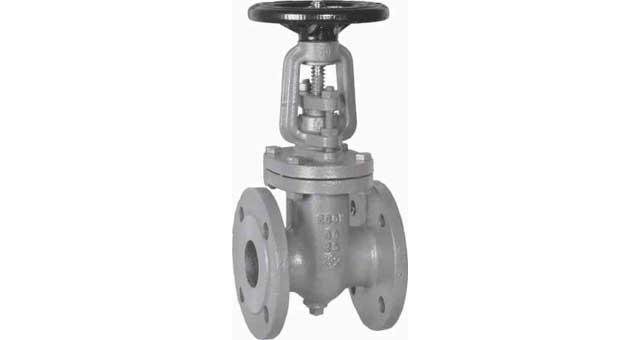

755641 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 40MM

IMPA:755641

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755642 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 50MM

IMPA:755642

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755643 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 65MM

IMPA:755643

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755644 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 80MM

IMPA:755644

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755645 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 100MM

IMPA:755645

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755646 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 125MM

IMPA:755646

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755647 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 150MM

IMPA:755647

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755648 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 200MM

IMPA:755648

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755649 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 250MM

IMPA:755649

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.

755650 GATE VALVE DIN CAST IRON, FLANGED PN10 #2406 300MM

IMPA:755650

MTML UOM:PCE

Cast iron gate valves with stainless steel seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, drain plug, grease nipple, short face to face acc. to EN 558-1, 14 (DIN 3202-F4). Application: cold and hot fresh water, lubricating oil, steam etc. Application due to the absence of cupriferous parts, these valves are especially suitable for aggressive media.
