Gate Valves DIN Cast Iron PN10 #317

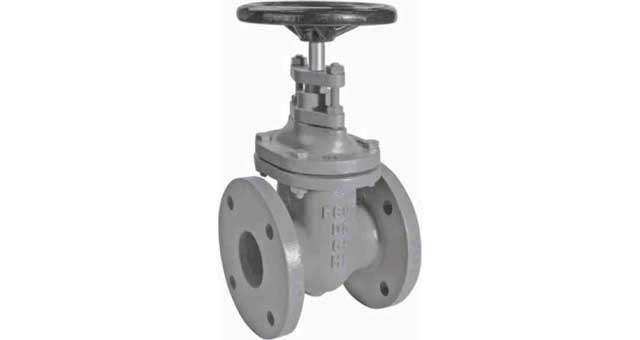

755571 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 40

IMPA:755571

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755572 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 50

IMPA:755572

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755573 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 65

IMPA:755573

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755574 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 80

IMPA:755574

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755575 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 100

IMPA:755575

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755576 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 125

IMPA:755576

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755577 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 150

IMPA:755577

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755578 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 200

IMPA:755578

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755579 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 250

IMPA:755579

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755580 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 300

IMPA:755580

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755581 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 350

IMPA:755581

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755582 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 400

IMPA:755582

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755584 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 500

IMPA:755584

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

755586 GATE VALVE DIN CAST IRON, FLANGED PN10 #317 DN 600

IMPA:755586

MTML UOM:PCE

Cast iron gate valve with bronze seat, pressure rating PN 2.5/6/10, flanged ends acc. to DIN PN 10, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, short Face To Face acc. to EN 558-1, 14 (DIN 3202-F4). This model has standard a position indicator and drain plug. Application : cold and hot fresh water, seawater, lubricating oil, steam, etc.

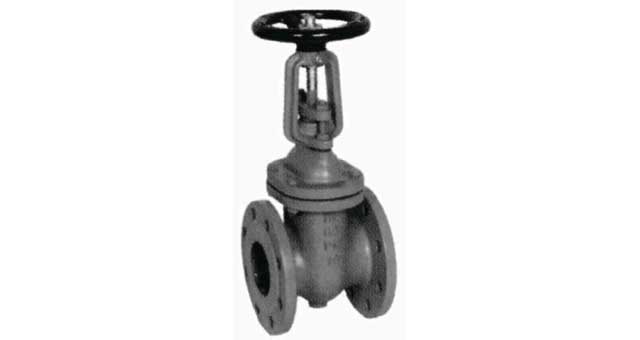

755632 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 50MM

IMPA:755632

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755633 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 65MM

IMPA:755633

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755634 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 80MM

IMPA:755634

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755635 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 100MM

IMPA:755635

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755636 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 125MM

IMPA:755636

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755637 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 150MM

IMPA:755637

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755638 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 200MM

IMPA:755638

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755639 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 250MM

IMPA:755639

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.

755640 GATE VALVE DIN CAST IRON, FLANGED PN10 #319 300MM

IMPA:755640

MTML UOM:PCE

Cast iron gate valves with bronze seat, pressure rating PN 10, flanged ends acc. to DIN PN 10, bolted bonnet, outside screwed stem and yoke, rising stem, non-rising handwheel, solid wedge, short face to face acc. to EN558-1, 14 (DIN 3202-F4). This model has a double pitch threaded stem (fast opening/closing) and drain plug. Purpose : cold and hot fresh water, saltwater, lubricating oil, steam etc.
