Gate Valves DIN Cast Iron PN10 #293

755651 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 40MM

IMPA:755651

MTML UOM:PCE

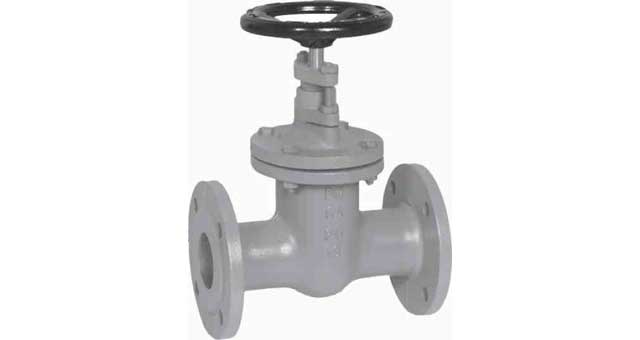

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755652 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 50MM

IMPA:755652

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755653 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 65MM

IMPA:755653

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755654 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 80MM

IMPA:755654

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755655 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 100MM

IMPA:755655

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755656 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 125MM

IMPA:755656

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755657 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 150MM

IMPA:755657

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755658 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 200MM

IMPA:755658

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755659 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 250MM

IMPA:755659

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.

755660 GATE VALVE DIN CAST IRON, FLANGED PN10 #293 300MM

IMPA:755660

MTML UOM:PCE

Cast iron gate valve with brass seat, pressure rating PN 16, flanged ends acc. to DIN PN 10/16, bolted bonnet, inside screwed stem, non-rising stem, non-rising handwheel, solid wedge, long face to face acc. to EN 558-1, 15 (DIN 3202-F5). Application: as standard, these valves can be used for cold and warm water.
