Gate Valves DIN Bronze PN10/16 #291D

755541 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 15MM

IMPA:755541

MTML UOM:PCE

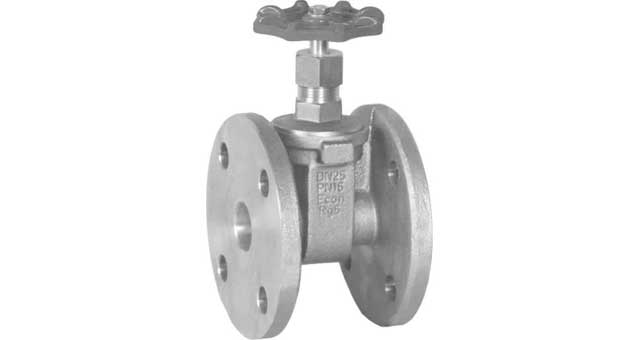

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755542 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 20MM

IMPA:755542

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755543 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 25MM

IMPA:755543

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755544 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 32MM

IMPA:755544

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755545 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 40MM

IMPA:755545

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755546 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 50MM

IMPA:755546

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755547 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 65MM

IMPA:755547

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755548 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 80MM

IMPA:755548

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.

755549 GATE VALVE BRONZE DIN FLANGED, PM10/16 #291 100MM

IMPA:755549

MTML UOM:PCE

Bronze gate valve with bronze wedge and seat, pressure rating PN 16, flat faced flange acc. to DIN PN 10/16, threaded bonnet, inside screwed stem, non-rising stem and handwheel, face to face acc. to EN 558-1, 47 (DIN 3202-F19). Heavy duty construction with flat faced flanges. Possible certification by various classification societies. Application: cold and hot water, saturated steam and other neutral media. Application area: general; but primarily used in shipbuilding.
