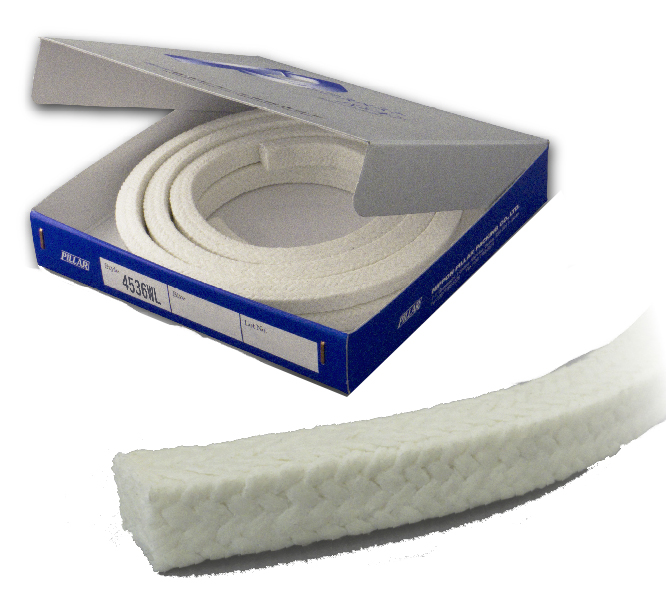

Artificial Fiber Braided White Gland Packing for Rotating Equipment

810472 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 5MMX3MTR

IMPA:810472

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810473 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 6.5MMX3MTR

IMPA:810473

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810474 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 8MMX3MTR

IMPA:810474

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810475 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 9.5MMX3MTR

IMPA:810475

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810476 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 10MMX3MTR

IMPA:810476

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810477 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 11MMX3MTR

IMPA:810477

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810478 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 12.5MMX3MTR

IMPA:810478

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810479 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 14.5MMX3MTR

IMPA:810479

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810480 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 16MMX3MTR

IMPA:810480

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810481 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 17.5MMX3MTR

IMPA:810481

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810482 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 19MMX3MTR

IMPA:810482

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810483 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 20.5MMX3MTR

IMPA:810483

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810484 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 22MMX3MTR

IMPA:810484

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810485 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 24MMX3MTR

IMPA:810485

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)

810486 PACKING NON ASBESTOS WATER/OIL, PILLAR NO.4536WL 25.5MMX3MTR

IMPA:810486

MTML UOM:BX

Pillar No. 4536WL Structure: A white gland packing made of aramid-fiber-covered yarn. It is treated with special lubricant and PTFE to ensure good lubricity. Feature: It has outstanding flexibility and sealing properties. Applications: For rotating equipments that require white packings. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.0MPaG (10kgf/cm2), Velocity to 10m/s, PV to 6.5MPaG·m/s(150kgf/cm2·m/s)
