Packing Pillar #6521L Carbonized Fiber Braided

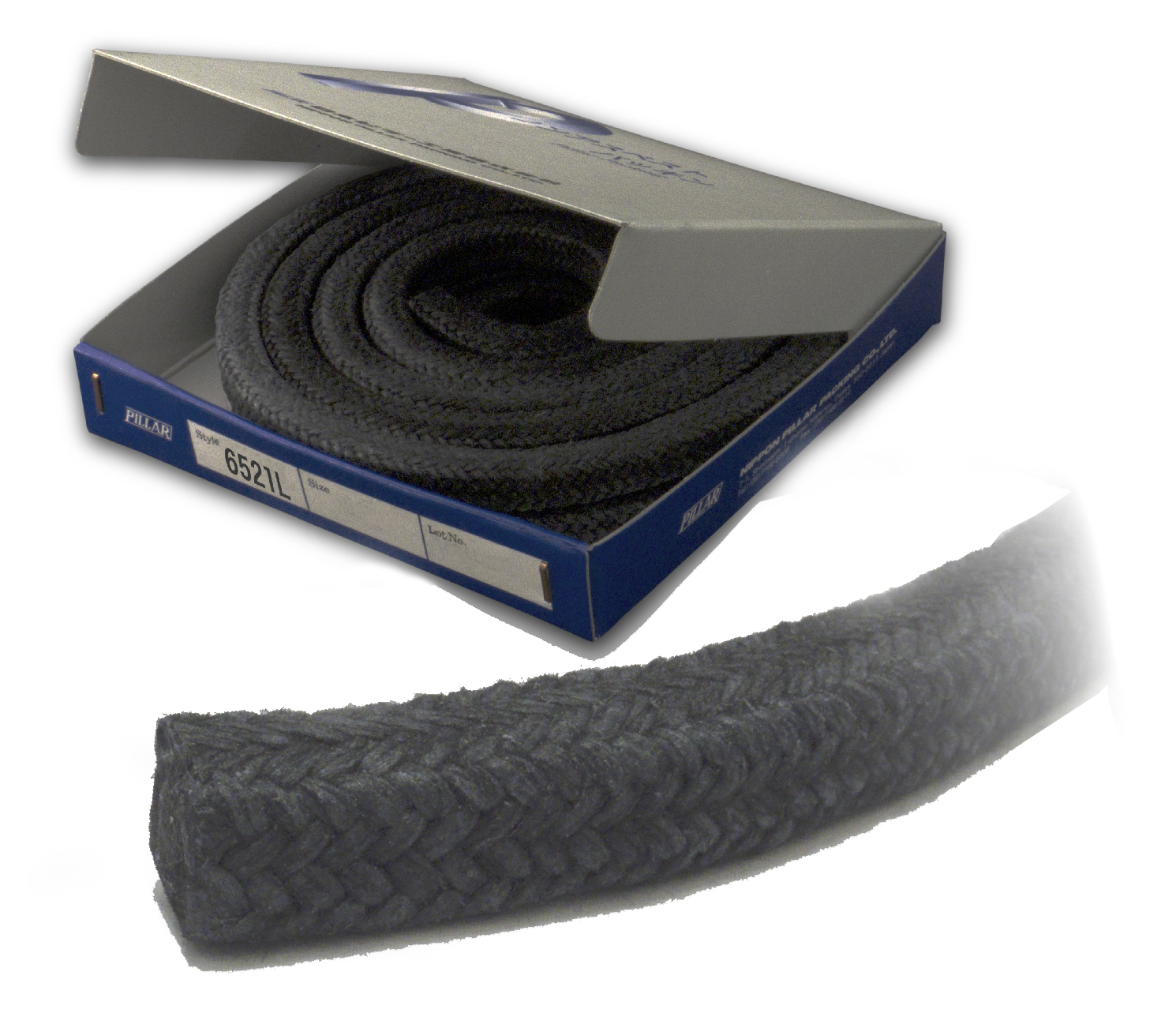

810397 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 5MMX3MTR

IMPA:810397

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810398 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 6.5MMX3MTR

IMPA:810398

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810399 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 8MMX3MTR

IMPA:810399

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810400 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 9.5MMX3MTR

IMPA:810400

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810487 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 10MMX3MTR

IMPA:810487

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810488 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 11MMX3MTR

IMPA:810488

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810489 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 12.5MMX3MTR

IMPA:810489

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810490 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 14.5MMX3MTR

IMPA:810490

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810491 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 16MMX3MTR

IMPA:810491

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810492 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 17.5MMX3MTR

IMPA:810492

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810493 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 19MMX3MTR

IMPA:810493

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810494 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 20.5MMX3MTR

IMPA:810494

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810495 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 22MMX3MTR

IMPA:810495

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810496 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 24MMX3MTR

IMPA:810496

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}

810497 PACKING CARBONIZED FIBER BRAID, PILLAR NO.6521L 25.5MMX3MTR

IMPA:810497

MTML UOM:BX

Pillar No. 6521L A packing made of carbonized fiber which is impregnated with the PTFE resin liquid and interlocking braided into square and then impregnated with a special lubricant after. Feature: A sister product of Style 6501L, has further been improved in its pressure-proof property and has characteristics that its sealing property is less influenced by pressure fluctuation of pump and it is stable when used for a large-sized shaft. Applications: Water, hot water, oil, solvent, weak acid, weak alkali, pumps, mixers, sterntubes. Performance: pH 2 to 12, Temp. 200℃, Press. 1.2 MPa {12.5 kgf/cm2}, Velocity 20 m/s, V value 9.8 MPa•m/s {100 kgf/cm2•m/s}
