Packing Pillar #4505L PTFE Fiber

810401 PACKING PTFE FIBER, PILLAR NO.4505L 3MMX3MTR

IMPA:810401

MTML UOM:BX

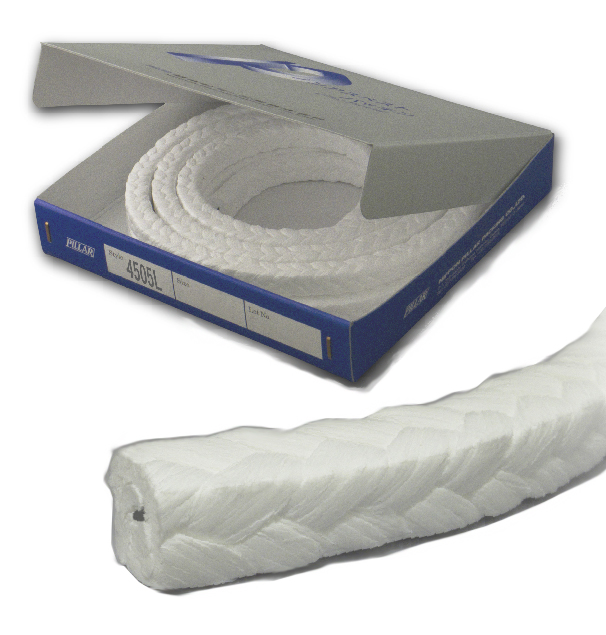

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810402 PACKING PTFE FIBER, PILLAR NO.4505L 5MMX3MTR

IMPA:810402

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810403 PACKING PTFE FIBER, PILLAR NO.4505L 6.5MMX3MTR

IMPA:810403

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810404 PACKING PTFE FIBER, PILLAR NO.4505L 8MMX3MTR

IMPA:810404

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810405 PACKING PTFE FIBER, PILLAR NO.4505L 9.5MMX3MTR

IMPA:810405

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810406 PACKING PTFE FIBER, PILLAR NO.4505L 11MMX3MTR

IMPA:810406

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810407 PACKING PTFE FIBER, PILLAR NO.4505L 12.5MMX3MTR

IMPA:810407

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810408 PACKING PTFE FIBER, PILLAR NO.4505L 14.5MMX3MTR

IMPA:810408

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810409 PACKING PTFE FIBER, PILLAR NO.4505L 16MMX3MTR

IMPA:810409

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)

810411 PACKING PTFE FIBER, PILLAR NO.4505L 19MMX3MTR

IMPA:810411

MTML UOM:BX

Pillar No. 4505L Structure & Features: A Square-braided packing consisting of PTFE (Polytetrafluoroethylene resin) fiber impregnated with PTFE dispersion and lubricant. It has good so solvent and chemical resistance. Applications: Solvents, strong acid, strong alkali, pumps, valves, mixers. Performance: pH 0 to 14, Temperature -100 to 260oC (Over 80oC, external cooling required), Pressure to 1.0 MPaG (10 kgf/cm2)(in pumps), to 10.3 MPagG(106 kgf/cm2 ).(in valves), Velocity to 10 m/s, PV to 4.9 MPaG · m/s (50 kgf/cm2 · m/s)
