Packing Pillar #4526L Non-asbestos Aramid Fiber

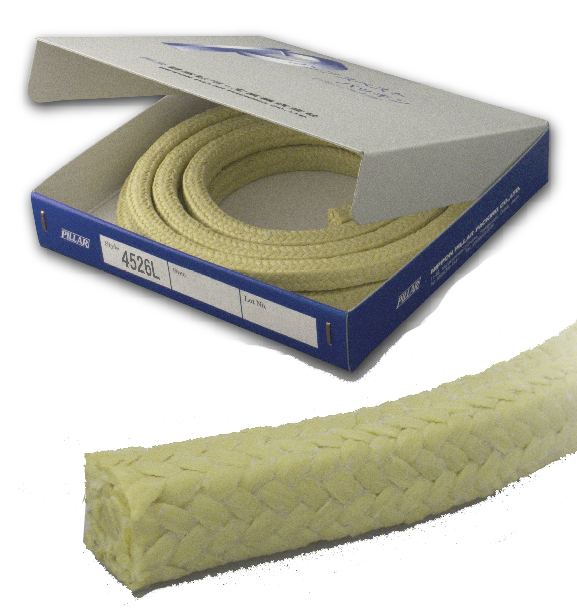

810453 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 12.5MMX3MTR

IMPA:810453

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810454 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 14.5MMX3MTR

IMPA:810454

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810455 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 16MMX3MTR

IMPA:810455

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810456 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 17.5MMX3MTR

IMPA:810456

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810457 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 19MMX3MTR

IMPA:810457

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810460 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 20.5MMX3MTR

IMPA:810460

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810468 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 22.0MMX3MTR

IMPA:810468

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)

810469 PACKING ARAMID FIBRE NO.4526L, ASBESTOS FREE 25.5MMX3MTR

IMPA:810469

MTML UOM:BX

Pillar No. 4526L: Structure: A braided packing made of highly resistant aramid fibers treated with PTFE dispersion and lubricant. Feature: The packing stay flexible thanks to the original interlocked braiding technology. Applications : An ideal choice for applications that require packings made of strong fibers, such as slurry pumps. Performance: Temperature to 260oC (Over 80oC, external cooling required), Pressure to 1.6 MPaG (16 kgf/cm2)( in pump), to 10.3MPaG(106 kgf/cm2)( in valve), Velocity to 16 m/s, PV to 14.7 MPaG • m/s (150 kgf/cm2・m/s)
