Packing Pillar #4527L Special PTFE Fiber

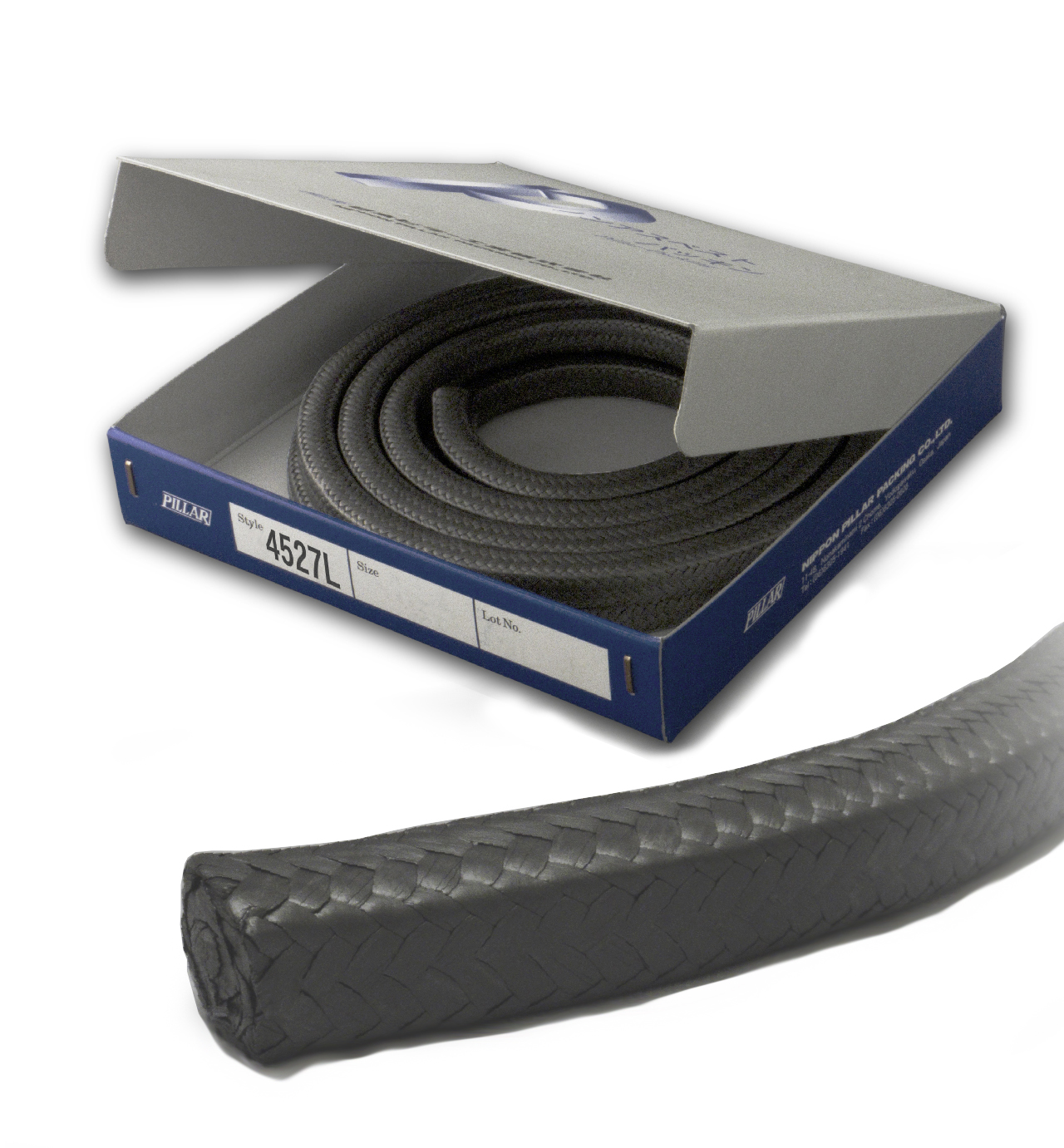

810521 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 5MMX3MTR

IMPA:810521

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810522 PACKING NON ASBESTOS CHEMICAL, PUMP PILLARNO.4527L 6.5MMX3MTR

IMPA:810522

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810523 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 8MMX3MTR

IMPA:810523

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810524 PACKING NON ASBESTOS CHEMICAL, PUMP PILLARNO.4527L 9.5MMX3MTR

IMPA:810524

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810525 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 10MMX3MTR

IMPA:810525

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810526 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 11MMX3MTR

IMPA:810526

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810527 PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 12.5MMX3MTR

IMPA:810527

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810528 PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 14.5MMX3MTR

IMPA:810528

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810529 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 16MMX3MTR

IMPA:810529

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810530 PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 17.5MMX3MTR

IMPA:810530

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810531 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 19MMX3MTR

IMPA:810531

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810532 PACKING NON ASBESTOS CHEMICAL, PUMP PILR NO.4527L 20.5MMX3MTR

IMPA:810532

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)

810533 PACKING NON ASBESTOS CHEMICAL, PUMP PILLAR NO.4527L 22MMX3MTR

IMPA:810533

MTML UOM:BX

Pillar No. 4527L Structure: A packing consisting of the PTFE fiber, and containing highly pure graphite and a special lubricant woven into interlocked braids. Features: Achieved high sealing performance and chemical resistance by the flexibility obtained from interlocked braiding technology. Applications: Recommended for use with chemical transfer pumps. Performance: pH 0 to 14, Temperature -100°C to 260oC (Over 80oC, external cooling required), Pressure to 1.2 MPaG (12.5 kgf/cm2), Velocity to 20 m/s, PV to 12.3 MPaG · m/s (125 kgf/cm2 · m/s)
